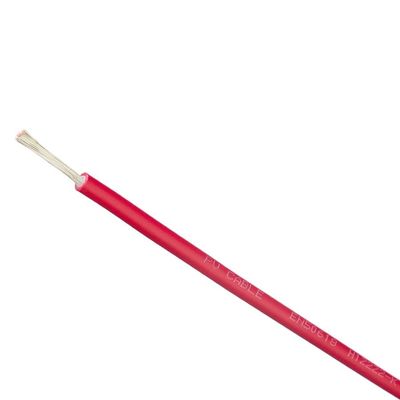

TUV Approved 1000V Solar Cable H1z2z2-k 10mm2 with Halogen Content Test EN60754-1/EN60754-2 and TUV Approval

TUV Approved 1000V Solar Cable H1z2z2-k 10mm2 with Halogen Content Test EN60754-1/EN60754-2 and TUV Approval
TUV Approved 1000V Solar Cable H1z2z2-k 10mm2 with Halogen Content Test EN60754-1/EN60754-2 and TUV Approval TUV Approved 1000V Solar Cable H1z2z2-k 10mm2 with Halogen Content Test EN60754-1/EN60754-2 and TUV Approval TUV Approved 1000V Solar Cable H1z2z2-k 10mm2 with Halogen Content Test EN60754-1/EN60754-2 and TUV Approval TUV Approved 1000V Solar Cable H1z2z2-k 10mm2 with Halogen Content Test EN60754-1/EN60754-2 and TUV Approval TUV Approved 1000V Solar Cable H1z2z2-k 10mm2 with Halogen Content Test EN60754-1/EN60754-2 and TUV Approval TUV Approved 1000V Solar Cable H1z2z2-k 10mm2 with Halogen Content Test EN60754-1/EN60754-2 and TUV Approval

Large Image :  TUV Approved 1000V Solar Cable H1z2z2-k 10mm2 with Halogen Content Test EN60754-1/EN60754-2 and TUV Approval

Product Details:
Place of Origin: Zhejiang, China
Brand Name: SA
Model Number: PV1-F, PV Cable
Payment & Shipping Terms:
Minimum Order Quantity: 1000 meters
Price: CN¥7.98/meters 1000-4999 meters
Contact Now

TUV Approved 1000V Solar Cable H1z2z2-k 10mm2 with Halogen Content Test EN60754-1/EN60754-2 and TUV Approval

Description
Insulation Material: XLPO Type: LOW VOLTAGE
Application: Industrial Conductor Material: Tinned Copper
Jacket: XLPO Size: 10mm2
Product Name: PV Cable Rated Voltage: AC:1.0/1.0KV DC:1.5KV
Core: Single Core Or Double Core Insulation: PVC Insulation Control Cable
Temperature: -40 ~90 Degree Thermal Endurance Properties:: 120℃,
Halogen Content Test: EN60754-1/EN60754-2 Service Life: More Than 25 Years
Conductor Area: 77/0.4MM Outside Diameter: 7.4MM±0.2MM

Products Description
TUV Approved 1000V Solar Cable H1z2z2-k 10mm2 with Halogen Content Test EN60754-1/EN60754-2 and TUV Approval 0
TUV Approved 1000V Solar Cable H1z2z2-k 10mm2 with Halogen Content Test EN60754-1/EN60754-2 and TUV Approval 1
Product:
TUV approval 2023 hot sale china wholesale 1000V solar cable h1z2z2-k 4 sq mm dc solar cable low price per meter pv wire
Conductor:
Tinned  Copper Strand
Rated voltage:
AC:1.0/1.0KV DC:1.5KV
Voltage test on completed cable:
AC:6.5KV DC:15KV,5min
Thermal endurance properties:
120℃, 20000h，elongation at break≥50%
TUV Approved 1000V Solar Cable H1z2z2-k 10mm2 with Halogen Content Test EN60754-1/EN60754-2 and TUV Approval 2
TUV Approved 1000V Solar Cable H1z2z2-k 10mm2 with Halogen Content Test EN60754-1/EN60754-2 and TUV Approval 3
TUV Approved 1000V Solar Cable H1z2z2-k 10mm2 with Halogen Content Test EN60754-1/EN60754-2 and TUV Approval 4
TUV Approved 1000V Solar Cable H1z2z2-k 10mm2 with Halogen Content Test EN60754-1/EN60754-2 and TUV Approval 5
TUV Approved 1000V Solar Cable H1z2z2-k 10mm2 with Halogen Content Test EN60754-1/EN60754-2 and TUV Approval 6
TUV Approved 1000V Solar Cable H1z2z2-k 10mm2 with Halogen Content Test EN60754-1/EN60754-2 and TUV Approval 7
TUV Approved 1000V Solar Cable H1z2z2-k 10mm2 with Halogen Content Test EN60754-1/EN60754-2 and TUV Approval 8
Recommend Products
TUV Approved 1000V Solar Cable H1z2z2-k 10mm2 with Halogen Content Test EN60754-1/EN60754-2 and TUV Approval 9
Why Choose Us
TUV Approved 1000V Solar Cable H1z2z2-k 10mm2 with Halogen Content Test EN60754-1/EN60754-2 and TUV Approval 10
TUV Approved 1000V Solar Cable H1z2z2-k 10mm2 with Halogen Content Test EN60754-1/EN60754-2 and TUV Approval 11
Company Profile
TUV Approved 1000V Solar Cable H1z2z2-k 10mm2 with Halogen Content Test EN60754-1/EN60754-2 and TUV Approval 12
TUV Approved 1000V Solar Cable H1z2z2-k 10mm2 with Halogen Content Test EN60754-1/EN60754-2 and TUV Approval 13
Product packaging
TUV Approved 1000V Solar Cable H1z2z2-k 10mm2 with Halogen Content Test EN60754-1/EN60754-2 and TUV Approval 14
FAQ
TUV Approved 1000V Solar Cable H1z2z2-k 10mm2 with Halogen Content Test EN60754-1/EN60754-2 and TUV Approval 15
Q1: Are you a factory or trading company?  A1: We are a manufacturer.
Q2: May I buy samples from you?  A2: Yes! You are welcome to place sample order to test our superior quality and services.
Q3: What is your Warranty? A3: All the products will have 12 months Warranty
Q4:What payment method do you accept? A4:T/T(Bank transfer), L/C, Western Union, Money Gram, Paypal, etc.
Q5: Can you put my brand name (logo) on these products? A5: Yes! The professional OEM services will be welcomed to us.  Our factory accepts to make the logo free for bulk orders.
Q6: May I know the status of my order? A6: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.
Q7: What’s the leading time? (How long do you need to prepare my goods? A7: Delivery (no more than 1000pcs) will be arranged within 3-7 days after payment, and arrive you within about 3-7 working days via international express.

TUV Approved 1000V Solar Cable H1z2z2-k 10mm2 with Halogen Content Test EN60754-1/EN60754-2 and TUV Approval 16
