Product Details:
|
| Insulation Material: | XLPO | Type: | LOW VOLTAGE |
|---|---|---|---|
| Application: | Industrial | Conductor Material: | Tinned Copper |
| Jacket: | XLPO | Size: | 6mm2 |
| Product Name: | PV Cable | Rated Voltage: | AC:1.0/1.0KV DC:1.5KV |
| Core: | Single Core Or Double Core | Insulation: | PVC Insulation Control Cable |
| Temperature: | -40 ~90 Degree | Thermal Endurance Properties:: | 120℃, |
| Halogen Content Test: | EN60754-1/EN60754-2 | Service Life: | More Than 25 Years |
| Conductor Area: | 78/0.295MM | Outside Diameter: | 6.1MM±0.15MM |

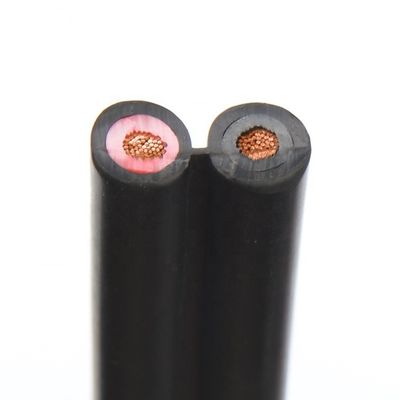

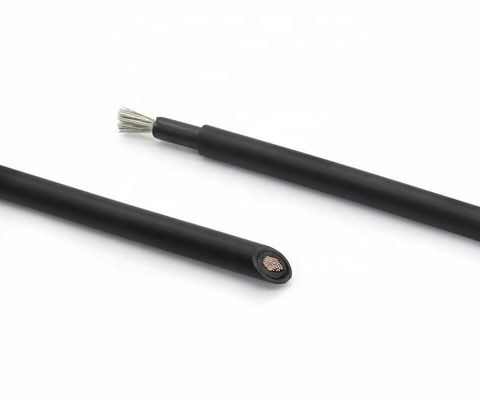

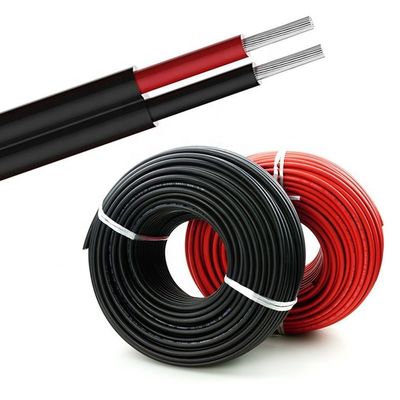

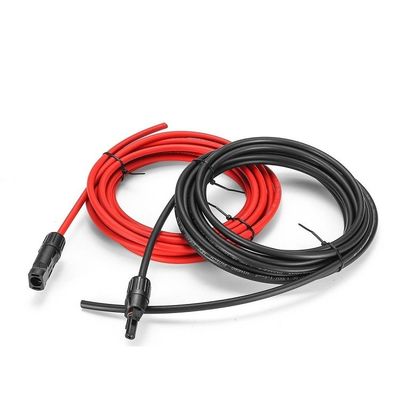

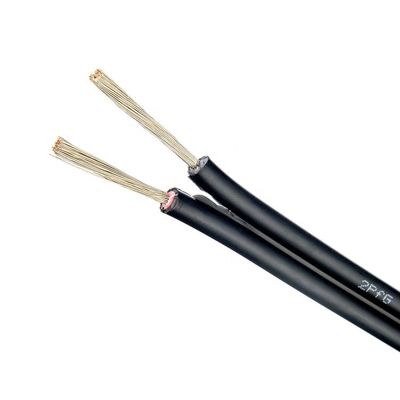

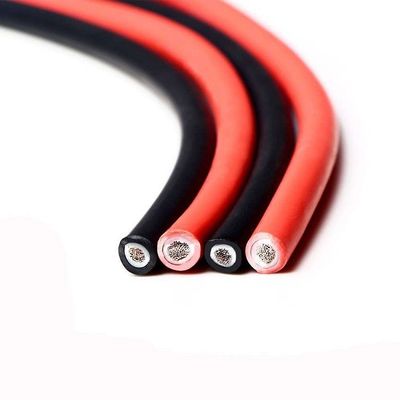

Product: | competitive price solar pv cable 4mm and 6mm for solar system with PV1-F Tinned Coppe in DC requirements for use | ||||||
Conductor: | Tinned Copper Strand | ||||||
Rated voltage: | AC:1.0/1.0KV DC:1.5KV | ||||||
Voltage test on completed cable: | AC:6.5KV DC:15KV,5min | ||||||
Thermal endurance properties: | 120℃, 20000h，elongation at break≥50% | ||||||
