Product Details:
|
| Insulation Material: | XLPO | Type: | LOW VOLTAGE |
|---|---|---|---|
| Application: | Industrial | Conductor Material: | Tinned Copper |
| Jacket: | XLPO | Size: | 4mm2 |
| Product Name: | PV Cable | Rated Voltage: | AC:1.0/1.0KV DC:1.5KV |
| Core: | Single Core | Insulation: | PVC Insulation Control Cable |
| Temperature: | -40 ~90 ℃ | Halogen Content Test: | EN60754-1/EN60754-2 |
| Conductor: | Tinned Copper | Sheath: | XLPO/XLPE |

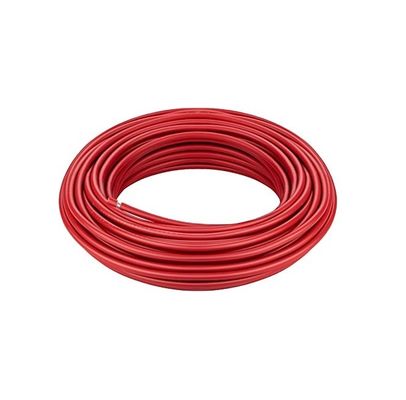

| Sheath Color: | Red | Package: | 100m/Coil Or Customization |
| Port: | Shanghai/Ningbo Port |

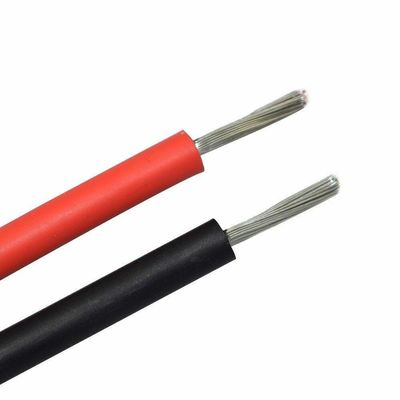

Product: | TUV approval XLPO insulation h1z2z2k solar earth cable 4 sq mm copper tinned dc wire for solar energy project | ||||||
Conductor: | Tinned Copper Strand | ||||||
Rated voltage: | AC:1.0/1.0KV DC:1.5KV | ||||||
Voltage test on completed cable: | AC:6.5KV DC:15KV,5min | ||||||
Thermal endurance properties: | 120℃, 20000h，elongation at break≥50% | ||||||
